vidaXL Manual Retractable Awning 98.4" - User Manual

1. Ներածություն

Thank you for choosing the vidaXL Manual Retractable Awning. This awning is designed to provide adjustable shade for outdoor spaces such as balconies, gardens, and patios. Its durable polyester fabric with PU coating offers protection against UV rays and various weather conditions, while the manual crank system allows for easy extension and retraction.

Please read this manual thoroughly before assembly and operation to ensure safe and correct use of your awning. Keep these instructions for future reference.

2. Անվտանգության հրահանգներ

• Կարդացեք բոլոր հրահանգները. Հավաքելուց և օգտագործելուց առաջ ուշադիր կարդացեք և հասկացեք այս ձեռնարկում տրված բոլոր հրահանգները։
• Համագումար. Assembly requires at least two adults. Ensure all components are securely fastened before use.
• Մոնտաժման մակերես. Mount the awning only on a sturdy, stable surface capable of supporting its weight and resisting wind loads.
• Wind and Weather: Retract the awning during strong winds, heavy rain, or snow to prevent damage to the product and potential injury.
• Մաքսազերծում: Ensure adequate clearance around the awning for safe operation and to prevent obstruction.
• Տեխնիկական սպասարկում: Regularly inspect the awning for any signs of wear, damage, or loose fasteners. Address any issues promptly.
• Կալիֆորնիայի առաջարկ 65 Զգուշացում. This product may expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

3. Փաթեթի բովանդակությունը

Verify that all parts are present before beginning assembly. If any parts are missing or damaged, contact vidaXL customer service.

• Awning fabric with frame components
• Աջակցման ձողեր
• Ձեռքով կռունկ բռնակ
• Մոնտաժային սարքավորումներ (պտուտակներ, խարիսխներ և այլն)
• Մոնտաժման հրահանգներ

4. Կարգավորում և հավաքում

Assembly of the vidaXL Manual Retractable Awning requires one person and common tools. Follow the included assembly instructions carefully. The hand crank can be installed on either side for convenience.

Figure 1: Awning Dimensions. This diagram illustrates the overall dimensions of the awning, including width, projection, and adjustable height range.

4.1. Բաղադրիչն ավարտված էview

Figure 2: Awning Fabric and Roller. Shows the orange and white striped fabric rolled onto the main mechanism.

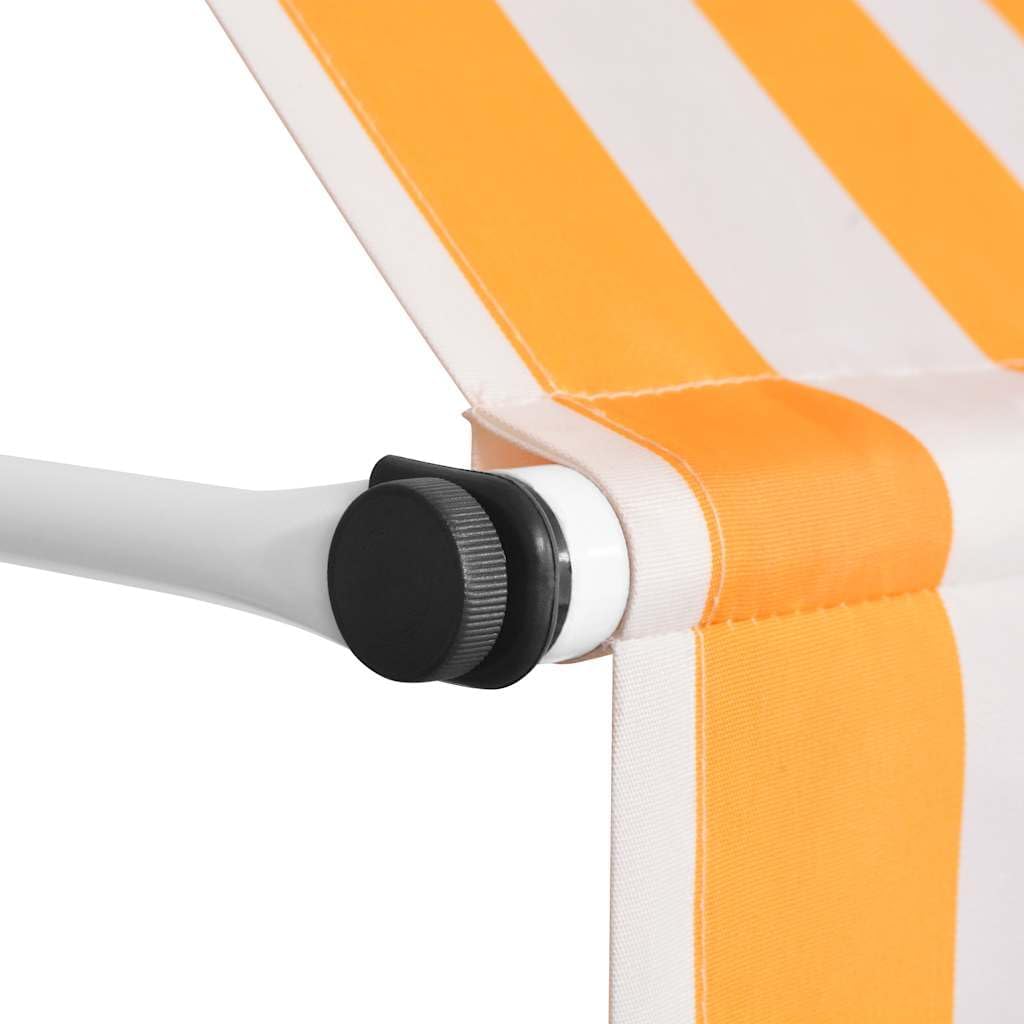

Figure 3: Crank Handle Connection. Detail of where the manual crank handle connects to operate the awning.

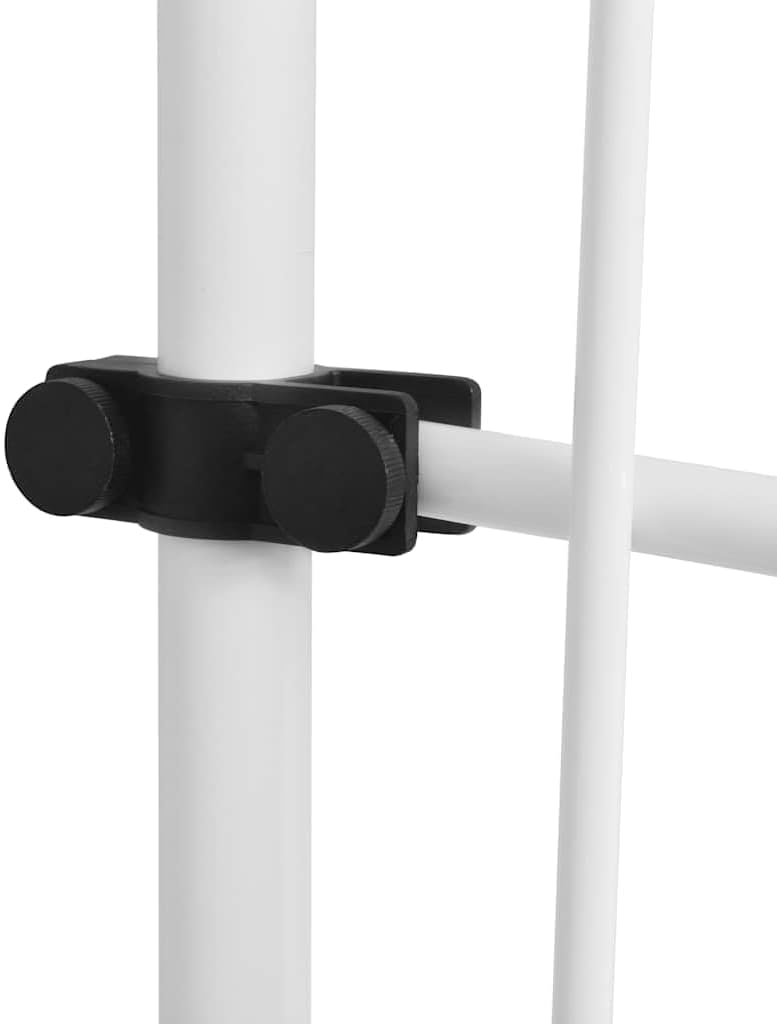

Figure 4: Support Pole Clamp. Illustrates the adjustable clamp used to secure the support poles.

Figure 5: Support Pole Base. Shows the foot of the support pole designed for stability.

4.2. Տեղադրման քայլեր (ընդհանուր)

1. Ընտրեք վայրը. Select a suitable mounting location on a wall or ceiling that can support the awning's weight and provide sufficient clearance.
2. Սարքի փակագծեր. Securely attach the main awning brackets to the chosen surface using appropriate hardware.
3. Attach Awning: Carefully lift and attach the main awning unit to the mounted brackets.
4. Assemble Support Poles: Connect the support poles and attach them to the awning's front bar and the ground/base. Adjust height as needed.
5. Install Crank Handle: Attach the manual crank handle to the designated connection point (Figure 3).
6. Փորձարկման գործողություն. Slowly extend and retract the awning to ensure smooth operation and proper alignment.

5. Գործառնական հրահանգներ

The vidaXL Manual Retractable Awning is operated using a manual crank handle. This allows for easy adjustment of the awning's extension and angle.

• Ծածկը երկարացնելու համար՝ Turn the manual crank handle clockwise. The awning fabric will slowly unroll, and the support arms will extend. Continue turning until the desired shade coverage is achieved.
• Ծածկը հանելու համար՝ Turn the manual crank handle counter-clockwise. The awning fabric will roll back onto the main roller, and the support arms will retract. Continue turning until the awning is fully retracted and secure.
• Adjusting Height/Angle: The awning can be set at 11 different heights. Adjust the support poles to achieve the desired height and angle for optimal shade. Ensure both poles are adjusted evenly.

Important: Always retract the awning during strong winds, heavy rain, or when not in use to prevent damage.

6. Պահպանում

Regular maintenance will prolong the life and appearance of your vidaXL awning.

• Կտորի մաքրում.


  Figure 6: Awning Fabric Detail. Shows the vibrant orange and white striped pattern of the polyester fabric.

  The polyester fabric with PU coating is designed to be UV and weather-resistant. To clean, gently brush off loose dirt. For stubborn stains, use a mild soap solution and a soft brush or cloth. Rinse thoroughly with clean water and allow the awning to air dry completely before retracting.
• Շրջանակի ստուգում. Periodically check the steel frame for any signs of rust, corrosion, or damage. Clean any dirt or debris from the frame.
• Ամրակման ստուգում. Ensure all screws, bolts, and connections are tight and secure. Re-tighten if necessary.
• Շարժվող մասեր. Keep the crank mechanism and moving joints free of dirt and debris. Lubricate if necessary with a silicone-based spray.
• Ձմեռային պահեստավորում. In areas with harsh winters, it is recommended to retract the awning and store it in a dry, protected area to prevent damage from snow and ice.

7: Անսարքություն

8. Տեխնիկական պայմաններ

9. Երաշխիք և աջակցություն

For warranty information, technical support, or to order replacement parts, please contact vidaXL customer service directly. Refer to your purchase documentation for specific warranty terms and contact details.

You can typically find support information on the official vidaXL webկայքում կամ այն ​​​​վաճառողի միջոցով, որտեղից դուք գնել եք ապրանքը:
