Generic 1 Inch PVC Snap-On Saddle Tee with 3/4 Inch FNPT Outlet

1. Ներածություն

This manual provides instructions for the proper installation, operation, and maintenance of the Generic 1 Inch PVC Snap-On Saddle Tee with a 3/4 Inch FNPT (Female National Pipe Taper) Threaded Outlet. This fitting is designed for modifying or repairing existing Schedule 40 PVC piping by adding a threaded connection point without requiring pipe cutting or gluing. It is suitable for irrigation systems, garden hose taps, drip lines, and other plumbing add-ons.

Constructed from durable white PVC, this saddle tee offers resistance to corrosion, chemicals, and UV exposure, making it suitable for both indoor and outdoor plumbing applications.

2. Անվտանգության տեղեկատվություն

• Always wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, when working with PVC pipes and fittings.
• Ensure the water supply to the pipe section is turned off and depressurized before beginning installation.
• Verify that the pipe size and material are compatible with the saddle tee (1-inch Schedule 40 PVC pipe).
• Do not use this fitting for applications exceeding its pressure rating or temperature limits.
• Պահել երեխաներից հեռու:

3. Ապրանքը ավարտված էview

The 1 Inch PVC Snap-On Saddle Tee provides a convenient method to create a 3/4 inch FNPT threaded connection on an existing 1-inch Schedule 40 PVC pipe. Its snap-on design eliminates the need for traditional cutting and solvent welding.

Հիմնական հատկանիշները:

• Fast & Easy Installation: Snap-on design allows quick attachment to 1-inch Schedule 40 PVC pipes without cutting or gluing.
• 3/4" FNPT Threaded Outlet: Provides a reliable connection for adding a new water line, drip system, or fitting to an existing pipe.
• Երկարակյաց ՊՎՔ շինարարություն. Made from corrosion-resistant white PVC for long-lasting performance in both indoor and outdoor plumbing applications.
• Անվտանգ կապ. Tight snap-on clamp and secure FNPT threading help ensure a sealed and stable connection.
• Բազմակողմանի օգտագործում. Ideal for irrigation systems, garden water lines, low-pressure plumbing, and DIY pipe modifications.

Ապրանքի բաղադրիչները.

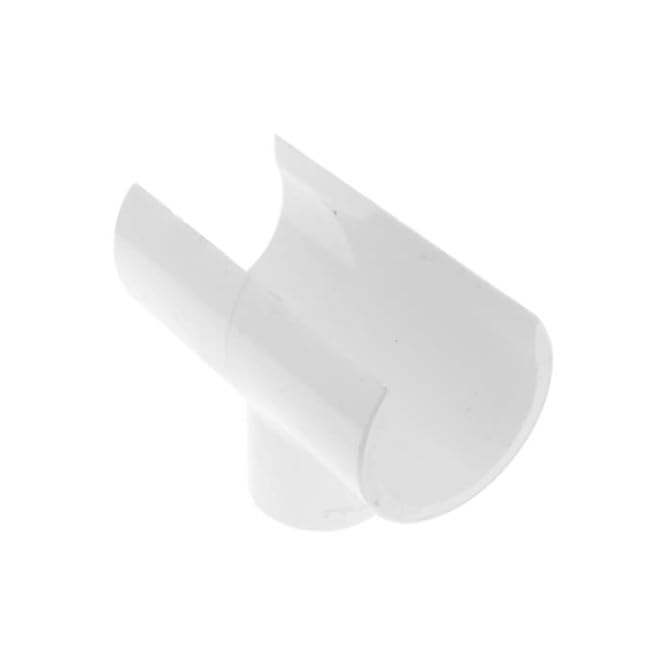

This image shows the Generic 1 Inch PVC Snap-On Saddle Tee with its 3/4 Inch FNPT outlet, ready for installation.

Խոշոր պլանով view of the 3/4 inch FNPT threaded outlet, highlighting the internal threads for secure connections.

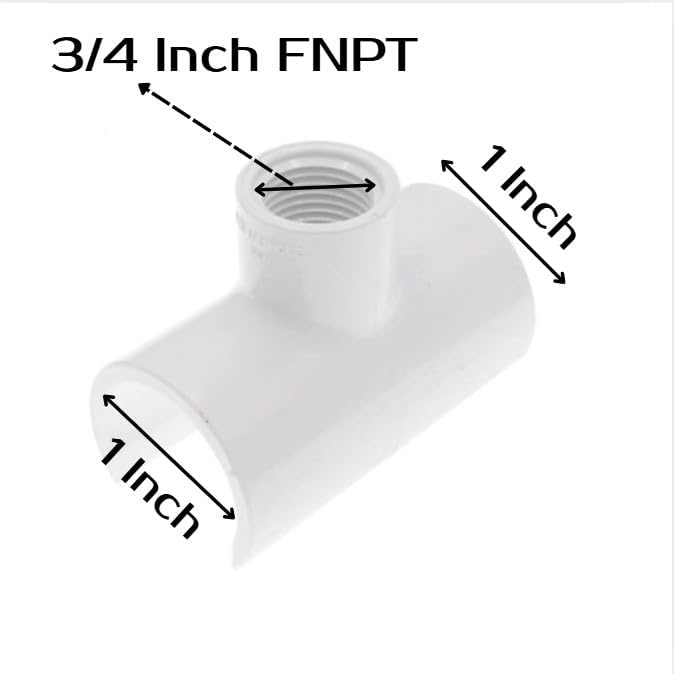

This diagram illustrates the key dimensions of the saddle tee, showing the 1-inch pipe compatibility and the 3/4-inch FNPT outlet size.

Icons representing the product's attributes: UV Resistant, Anti-Corrosion, Lightweight, and Heavy Duty construction.

Կոլաժի ցուցադրությունasing various applications and installations of PVC piping, demonstrating where the saddle tee can be utilized.

4. Կարգավորում և տեղադրում

Follow these steps to properly install the 1 Inch PVC Snap-On Saddle Tee:

1. Պատրաստեք խողովակը. Ensure the existing 1-inch Schedule 40 PVC pipe is clean, dry, and free of any debris, burrs, or sharp edges at the installation point. The surface should be smooth for a proper seal.
2. Position the Saddle Tee: Align the two halves of the snap-on saddle tee around the 1-inch PVC pipe at the desired location. Ensure the 3/4 inch FNPT outlet is oriented correctly for your application.
3. Տեղի ամրացնել՝ Firmly press the two halves of the saddle tee together until they audibly snap and lock securely around the pipe. Verify that the fitting is fully closed and seated tightly against the pipe surface.
4. Անվտանգության թեստ. Gently attempt to rotate or slide the saddle tee along the pipe. It should feel firmly attached and not move freely.
5. Connect Accessory: Thread your desired 3/4 inch NPT male fitting or accessory into the FNPT outlet of the saddle tee. Use appropriate thread sealant (e.g., PTFE tape or pipe dope) to ensure a watertight connection. Tighten hand-tight, then use a wrench for an additional 1-2 turns, being careful not to overtighten.
6. Restore Water Pressure: Slowly turn the water supply back on and carefully inspect the saddle tee and the connected accessory for any leaks.

5. Գործառնական հրահանգներ

Once installed, the PVC Snap-On Saddle Tee functions as a permanent connection point on your PVC pipeline. It allows for the diversion of water flow through the 3/4 inch FNPT outlet to an attached device or secondary line. The fitting itself does not require active operation; its function is passive, providing a secure and leak-resistant branch connection.

6. Պահպանում

The Generic PVC Snap-On Saddle Tee is designed for minimal maintenance. Regular inspection is recommended to ensure its longevity and proper function:

• Տեսողական զննում. Periodically check the saddle tee for any signs of wear, cracks, discoloration, or damage, especially if exposed to direct sunlight or harsh weather conditions.
• Արտահոսքի հայտնաբերում. Regularly inspect the connection points for any signs of water leakage. If a leak is detected at the threaded outlet, ensure the accessory is properly sealed and tightened. If the leak is from the saddle tee itself, it may indicate improper installation or damage.
• Մաքրում: If the fitting becomes dirty, clean it with a mild soap and water solution. Avoid using harsh chemicals or abrasive cleaners that could damage the PVC material.

7: Անսարքություն

• Leakage at Saddle Tee:
  • Պատճառը: Improper seating, damaged pipe surface, or damaged saddle tee.
  • Լուծում: Turn off water supply. Remove the saddle tee and inspect the pipe surface for imperfections. Ensure the saddle tee is fully snapped and seated correctly. If the saddle tee is damaged, replace it.
• Leakage at Threaded Outlet:
  • Պատճառը: Insufficient thread sealant, loose connection, or damaged threads.
  • Լուծում: Turn off water supply. Disconnect the accessory. Reapply thread sealant (e.g., new PTFE tape) to the male threads of the accessory. Re-thread and tighten the accessory securely, but do not overtighten. Inspect threads for damage; replace if necessary.
• Saddle Tee Does Not Snap Securely:
  • Պատճառը: Incorrect pipe size, obstruction, or manufacturing defect.
  • Լուծում: Verify the pipe is indeed 1-inch Schedule 40 PVC. Check for any debris preventing the halves from closing. If the pipe size is correct and there are no obstructions, the saddle tee may be defective and should be replaced.

8. Տեխնիկական պայմաններ

9. Երաշխիք և աջակցություն

Specific warranty information for this Generic product is not provided. For any product-related inquiries, support, or to report issues, please refer to the retailer or point of purchase for assistance.
