Hangman L18B 18-Inch No-Stud Floating Shelf Instruction Manual

Ապրանքը ավարտվել էview

The Hangman L18B No-Stud Floating Shelf is an 18-inch aluminum shelf designed for easy installation on drywall, plaster, or paneled walls without the need for studs. It utilizes a patented cleat system for secure mounting and can support up to 30 pounds. The shelf features a durable black powder-coated finish and includes all necessary hardware for installation.

Image: The Hangman L18B 18-inch No-Stud Floating Shelf in black powder coat finish.

Ներառված բաղադրիչներ

• Aluminum Ledge (Shelf)
• Wall Bracket (Mounting Cleat)
• Եղունգներ
• Bubble մակարդակը

Image: A hammer next to the wall bracket, showing the built-in bubble level and nails for installation.

Կարգավորում և տեղադրում

The Hangman No-Stud Floating Shelf is designed for quick and easy installation with minimal tools. Only a hammer is required.

Տեղադրման քայլեր.

1. Position the Wall Bracket: Hold the wall bracket (the piece with the built-in level) against the wall at your desired height and location. Ensure the bubble level indicates it is perfectly horizontal.
2. Ապահովեք փակագիծը. Using a hammer, gently tap the provided nails through the pre-drilled holes in the wall bracket. Work your way from one end to the other, ensuring the bracket remains level. The nails are designed to secure the bracket firmly into drywall, plaster, or paneled walls without needing to locate studs.
3. Տեղադրեք դարակը. Once the wall bracket is securely attached, align the back lip of the aluminum shelf with the top edge of the installed bracket. Gently slide the shelf downwards onto the bracket until it sits flush against the wall and is securely engaged.
4. Ստուգեք կայունությունը. Lightly test the shelf's stability before placing items on it.

Note: The wall bracket features a patented cleat system that allows for secure mounting using small nails, eliminating the need for drills, screws, or anchors.

Գործառնական հրահանգներ

Once installed, the Hangman L18B Floating Shelf is ready for use. It is designed to display various items in your home or office.

• Քաշը կարողություն: Do not exceed the maximum weight limit of 30 pounds (13.6 kg) to prevent damage or instability.
• Տեղադրում: Distribute weight evenly across the shelf surface for optimal stability.
• Առաջարկվող կիրառումներ. Ideal for displaying kitchen oils, wine bottles, glasses, books, pictures, or decorative items.

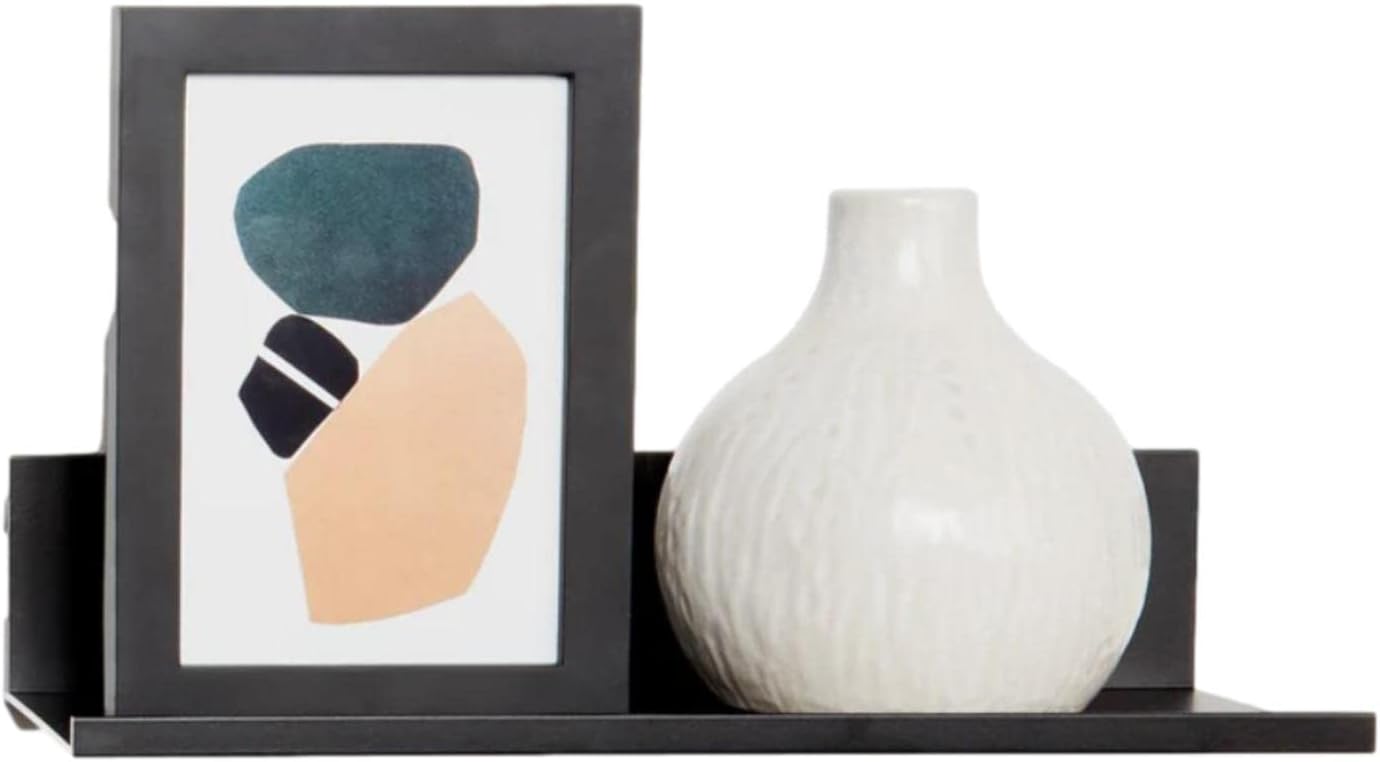

Image: The black floating shelf holding a framed picture and a white decorative vase, demonstrating its use.

Տեխնիկական սպասարկում

The Hangman L18B Floating Shelf requires minimal maintenance to retain its appearance and functionality.

• Մաքրում: Wipe the shelf with a dry cloth to remove dust and debris. Avoid abrasive cleaners or harsh chemicals that could damage the powder-coated finish.
• Ժանգի կանխարգելում. The aluminum construction and powder-coated finish make the shelf rustproof.

Անսարքությունների վերացում

• Shelf is not level: Ensure the wall bracket was installed perfectly level using the built-in bubble level. If not, carefully remove the nails, adjust the bracket, and re-install.
• Shelf feels loose: Verify that the nails are fully seated and the wall bracket is firmly attached to the wall. Ensure the shelf is fully engaged with the bracket. Do not exceed the 30-pound weight limit.
• Difficulty sliding shelf onto bracket: Check for any obstructions or misalignment between the shelf's back lip and the wall bracket. Ensure the bracket is not bent.

Տեխնիկական պայմաններ

Image: Technical diagram illustrating the shelf's dimensions, including inside shelf surface and total depth.

Անվտանգության տեղեկատվություն

Always ensure the shelf is securely mounted to the wall before use. Do not exceed the weight limit of 30 pounds (13.6 kg) to prevent sagging or damage to the shelf or wall. Keep small parts (nails) away from children.

Երաշխիք և աջակցություն

Երաշխիք: The manufacturer provides a 5-year warranty for this product.

Լրացուցիչ օգնության կամ աջակցության համար, խնդրում ենք այցելել Hangman Store on Amazon կամ դիմեք ձեր գնման հետ տրամադրված կոնտակտային տվյալներին։
